Product Overview

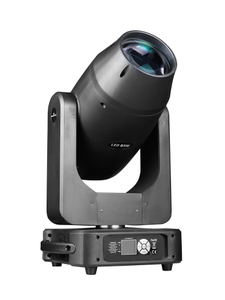

The 200W 3-in-1 LED Moving Head Stage Light revolutionizes stage lighting with its versatile combination of beam, spot, and wash capabilities in a single, compact fixture. Powered by a high-performance 200W white LED that delivers output equivalent to traditional 575W fixtures, this moving head light offers exceptional brightness while maintaining energy efficiency. With an impressive lifespan of 60,000 hours, it provides long-term reliability for professional venues and production companies. The innovative design integrates three essential lighting functions, eliminating the need for multiple fixtures and simplifying both setup and operation. Whether used in theaters, concert halls, or event spaces, this 3-in-1 fixture delivers professional-grade lighting effects with remarkable flexibility.

Product Features

Triple Function Integration

The defining feature of this fixture is its seamless integration of beam, spot, and wash capabilities, allowing lighting designers to create diverse effects without switching between different fixtures. The beam mode produces a tight, intense beam for dramatic effects, while the spot mode offers sharp projection with gobo patterns. The wash mode delivers smooth, even coverage for area lighting, making this a truly versatile solution for any stage production.

Advanced Optical System

Equipped with a precision optical system, this moving head light features a motorized zoom range of 7°-30°, allowing quick adjustment from narrow beams to wide washes. It includes a color wheel with 7 colors plus open and two gobo wheels: a static gobo wheel with 8 fixed metal gobos plus open and a rotating gobo wheel with 7 exchangeable glass gobos plus open. An 8-facet circular rotating prism adds additional effect possibilities, providing endless creative options for lighting designers.

Precise Control and Movement

The 200W 3-in-1 LED Moving Head offers exceptional control with 16 or 18 DMX channels (configurable based on needs), supporting detailed programming of all functions. It features smooth 540° pan and 270° tilt movements with 8-bit or 16-bit resolution options, ensuring precise positioning and fluid transitions. The fixture includes automatic pan/tilt position correction, preventing drift and maintaining accuracy during long performances. Control options include DMX512, stand-alone mode, and master-slave synchronization for flexible operation.

Durable and Efficient Design

Constructed with a heat-proof plastic and aluminum alloy housing, this fixture combines durability with lightweight design (13.50 kgs net weight). The advanced cooling system ensures quiet operation, making it suitable for theater productions where noise must be minimized. It operates on a wide voltage range of AC 90-240V, 50/60Hz and includes PowerCon in/out connectors for reliable power distribution in multi-fixture setups. The IP20 protection rating makes it suitable for indoor use in professional environments.

Product Applications

Theatrical Productions

In theater settings, the 200W 3-in-1 LED Moving Head excels at creating diverse lighting environments that enhance storytelling. Its spot function highlights actors during solos, the beam function creates dramatic effects for key scenes, and the wash function provides general stage illumination. The quiet operation ensures it won't interfere with dialogue or performances.

Concert Tours and Live Music Events

For live music performances, this versatile fixture adapts to different musical genres and performance styles. It can create dynamic beam effects during energetic numbers, project custom gobos for band logos, and provide even wash lighting for stage areas. The fast movement and response time allow it to sync perfectly with music, enhancing the overall visual experience for audiences.

Television Studios

In broadcast environments, the consistent color temperature and high-quality output of the 200W LED ensure optimal on-camera performance. The fixture's precise control allows lighting technicians to make subtle adjustments quickly, adapting to different scenes and talent requirements. The compact design is ideal for studio environments where space is often limited.

Corporate Events and Awards Ceremonies

For corporate functions, galas, and award shows, this moving head light provides professional lighting that can adapt to different segments of the event. From focusing on speakers during presentations to creating dynamic effects during performances, its versatility eliminates the need for multiple lighting fixtures, simplifying setup and operation.

FAQ

How does the 3-in-1 functionality work in practice?

The fixture seamlessly switches between beam, spot, and wash modes through DMX control or preset programs. Beam mode produces a concentrated, intense beam (7° zoom), spot mode uses gobos for patterned projection (medium zoom range), and wash mode provides broad, even coverage (up to 30° zoom). This allows a single fixture to perform the roles of three separate lights.

What is the color temperature of the 200W LED?

The high-quality LED in this fixture produces a bright white light with a color temperature of 9000K, providing crisp, clear illumination that works well for both stage performances and broadcast applications. The color wheel adds additional color options for creative effects.

How easy is it to change gobos in the rotating gobo wheel?

The fixture features a user-friendly design that allows easy access to the rotating gobo wheel, making gobos simple to change without extensive disassembly. This quick-change capability is especially valuable for productions that require different gobos for various scenes or events.

Can multiple fixtures be synchronized?

Yes, the 200W 3-in-1 LED Moving Head supports master-slave synchronization, allowing multiple fixtures to operate in perfect harmony without the need for a DMX controller. This feature simplifies setup for smaller events while still delivering coordinated lighting effects.

What kind of warranty is provided with this fixture?

This professional-grade moving head light comes with a standard 2-year manufacturer's warranty covering defects in materials and workmanship. The long lifespan of the LED (60,000 hours) ensures years of reliable performance even after the warranty period.

Voltage: AC90V-240V

Frequency: 50Hz/60Hz

Power: 380W

Light source: 200W

Lens: High precision combination optical lens

Color palette: 1 color palette, 9 colors+white light, rainbow effect speed adjustable, half step color effect

Fixed pattern disc: 1 fixed pattern disc, 10 patterns+white light, capable of bi-directional variable speed rotation

Rotating disc: 1 rotating pattern disc, 7 replaceable pattern discs+white light, the pattern flows back and forth from slow to fast

Prism disk: equipped with a built-in mirror disk that can rotate in both directions to switch effects

Horizontal scan: 540 °

Vertical scanning: 270 °

Channel mode: 20CH

Operation mode: DMX/automatic/voice control

Display mode: LCD display screen
