Product Overview

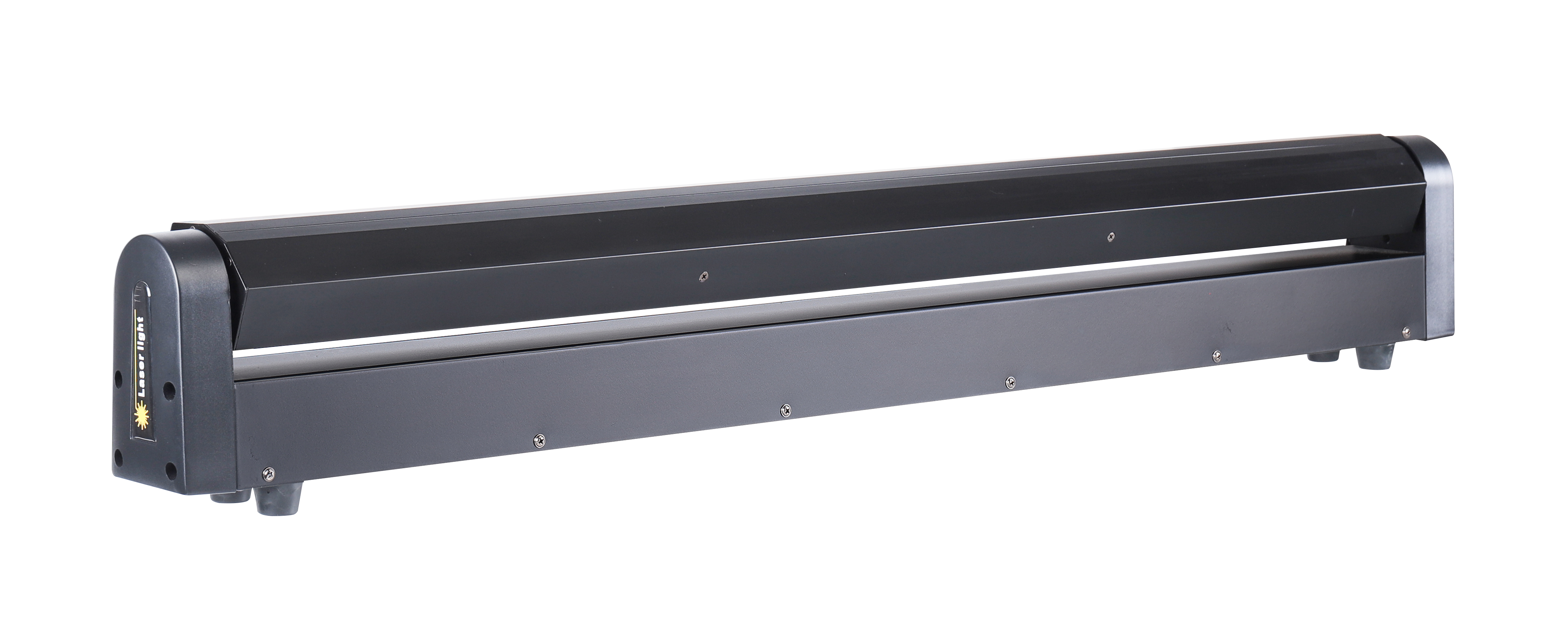

The 8-Eye 500mw DMX512 Moving Head Stage Laser redefines laser lighting precision with its multi-beam configuration and dynamic movement capabilities. This professional-grade fixture features 8 independent laser modules each delivering 500mw output—providing a combined power of 4000mw—to create stunning aerial effects and complex patterns across performance spaces. Unlike single-beam lasers with limited versatility, this moving head design combines 540° pan and 270° tilt movement with individual beam control, enabling both synchronized effects and independent beam patterns. Certified to FDA Class IIIb and CE standards, it offers the perfect balance of visual impact and safety compliance for professional events, with a rugged aluminum housing ensuring durability during touring and installation.

Product Features

Multi-Beam Laser Technology

At the core of this fixture's performance is its array of 8 high-precision laser diodes, each generating a 532nm green or 650nm red beam (configurable) with exceptional clarity and visibility. The innovative 8-eye design allows for simultaneous projection of multiple patterns that can combine to form larger composite graphics or operate independently for layered effects. Each beam features adjustable focus and 0.5°-5° beam angle control, enabling everything from tight pinpoint effects to wider wash patterns that cover stage areas effectively.

Advanced DMX Control System

The fixture supports comprehensive DMX512 protocol with flexible channel modes (12/24/32 channels) for precise programming control. The 32-channel mode provides individual adjustment of each laser's parameters, including pattern selection, speed, direction, and color mixing. Additional control options include Art-Net compatibility, stand-alone mode with 40 built-in patterns, sound activation with adjustable sensitivity, and master-slave synchronization for multi-unit setups. The integrated LCD display simplifies configuration and real-time monitoring of operational status.

Precision Movement Mechanism

Equipped with high-torque servo motors, the moving head achieves 540° pan and 270° tilt with 16-bit resolution for ultra-smooth operation and accurate positioning. The pan movement completes a full range in just 2.5 seconds, while tilt movement achieves full range in 2.0 seconds, ensuring rapid effect changes that keep pace with dynamic performances. A built-in position correction system prevents drift during extended use, maintaining consistent alignment throughout events.

Safety and Durability Features

Designed with professional safety standards, the fixture includes multiple protection mechanisms: automatic beam shutdown when tilted below 15° to prevent audience exposure, overheat protection, and emergency stop functionality. The rugged aluminum alloy housing provides effective heat dissipation while protecting internal components from physical damage, with an operating temperature range of -10°C to 40°C. The laser modules feature a rated lifespan of 10,000 hours under normal operating conditions.

Product Applications

Concert and Live Music Events

On concert stages, this 8-eye laser fixture creates dynamic beam shows that synchronize with musical performances. Its multiple beams can form sweeping aerial effects, geometric patterns, and tunnel effects that enhance stage depth, with individual beam control allowing for complex choreographed sequences that match musical rhythms and transitions.

Nightclub and Festival Environments

In nightclub settings, the fixture delivers eye-catching effects that transform dance floors into immersive visual experiences. The combination of movement and multi-beam patterns creates dynamic light architectures that respond to DJ sets, with sound activation mode enabling automatic synchronization to music beats without requiring complex programming.

Theatrical and Multimedia Productions

For theatrical performances and multimedia shows, this laser fixture adds dimensional lighting elements that complement projections and scenic designs. The precise beam control allows for targeted effects that highlight performers or set pieces, while the programmable patterns can create atmospheric elements like starfields, rain effects, or abstract textures that enhance storytelling.

Corporate Events and Product Launches

At corporate functions and product launches, the fixture provides sophisticated lighting accents that elevate event production values. It can project company logos, create elegant beam curtains for entrances, and deliver timed effects during key presentation moments. The DMX integration allows seamless operation with other lighting and AV systems in complex event setups.

FAQ

What safety certifications does this laser fixture have?

The fixture is fully compliant with FDA Class IIIb regulations (21 CFR 1040.10) and meets CE standards for laser safety, ensuring safe operation in professional environments. It includes mandatory safety features such as key-lock power activation, beam attenuation mechanisms, and automatic safety shutdown when operating outside predefined safe parameters.

How many control channels are available, and what do they control?

The fixture offers three channel modes: 12-channel (basic control), 24-channel (group control), and 32-channel (individual control). The 32-channel mode provides independent control over each of the 8 lasers including on/off, pattern selection, speed, direction, color, and focus, plus global movement parameters for pan/tilt functionality and effect synchronization.

What is the effective projection distance?

Each 500mw laser module maintains visible beam intensity at distances up to 50 meters in dark environments, with pattern clarity remaining consistent up to 30 meters. In well-lit venues or outdoor settings, effective visibility ranges from 15-25 meters depending on ambient light conditions and atmospheric effects like haze.

Can multiple units be synchronized?

Yes, the fixture supports both DMX daisy-chain synchronization (up to 16 units) and wireless synchronization via Art-Net protocol for unlimited units. The master-slave mode allows one fixture to control others without a DMX controller, maintaining precise timing across all connected units for coordinated multi-laser performances.

What maintenance is required for optimal performance?

Routine maintenance includes periodic cleaning of the laser apertures with compressed air to remove dust buildup. The fixture features a self-diagnostic system that monitors laser module health and temperature. The laser diodes have a rated lifespan of 10,000 hours, and the movement system uses maintenance-free bearings designed for 50,000+ operation cycles before requiring service.
