Product Overview

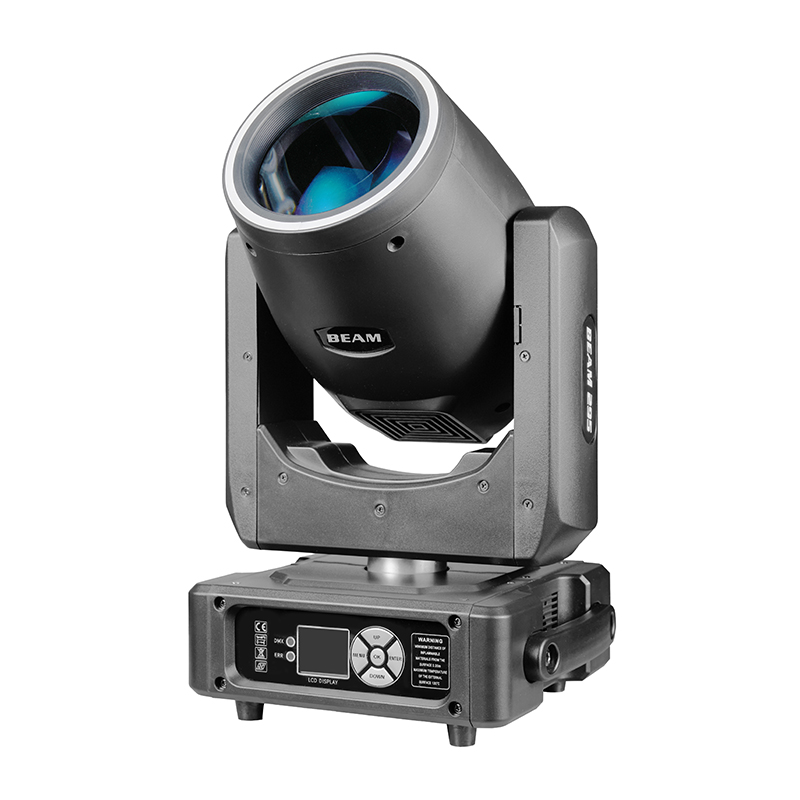

This compact fixture combines a high-output 230W LED engine—delivering equivalent performance to a 295W traditional fixture—with a 3.8° ultra-narrow beam angle to produce sharp, focused beams that cut through ambient light with precision. Its fast pan/tilt movement system (540° pan, 270° tilt) enables dynamic, music-synced effects, while DMX512 compatibility ensures seamless integration with existing lighting setups. Encased in a durable IP20-rated aluminum housing, this fixture withstands the rigors of frequent transport and demanding event schedules, making it a reliable workhorse for mobile entertainers.
Product Specifications
Parameter | Details |
Light Source | 230W high-output LED (295W equivalent) with 50,000+ hour lifespan |
Beam Angle | 3.8° (ultra-narrow) with optional frost filter for 25° wash mode |
Pan/Tilt Speed | 0–90°/sec (adjustable via DMX) with 16-bit resolution for smooth movement |
DMX Channels | 17/38 channels (selectable) with RDM support for remote diagnostics |
Strobe Effect | 0–25 flashes/sec (variable speed) with pulse width adjustment |
Color Temperature | 6500K (daylight white) with ±200K consistency across all units |
Power Consumption | 260W (max) with 10W standby mode for energy efficiency |
Weight | 8.5kg with ergonomic handle for easy transport |
Features
Ultra-Narrow Beam Performance:
3.8° beam angle creates pinpoint spots that highlight performers, DJ booths, or key areas with exceptional intensity, mimicking the effect of traditional sharpy fixtures at a fraction of the power.
Quick-change frost filter transforms the beam into a 25° wash, adding versatility for ambient lighting needs without requiring additional fixtures.
Dynamic Movement Capabilities:
540° pan and 270° tilt with 16-bit resolution ensures smooth, precise positioning, eliminating jitter even during rapid movements.
Auto-inversion function allows seamless mounting in trusses or on floors, adapting to diverse venue layouts.
Professional Control Options:
DMX512/RDM support enables real-time parameter adjustments—including brightness, strobe speed, and movement rate—directly from lighting consoles.
Sound-activated mode with 5 sensitivity levels automatically syncs effects to music, ideal for mobile DJs without access to complex control systems.
Reliable, Road-Ready Design:
Die-cast aluminum housing resists impacts, vibrations, and temperature fluctuations during transport and extended use.
Long-life LED technology (50,000+ hours) reduces maintenance costs and ensures consistent performance across hundreds of events.
Applications
DJ Performances:
Creates energetic beam shows with strobe effects, color rotations, and beam chases that synchronize with beat drops and musical transitions.
Syncs with DJ software via DMX for music-responsive lighting, enhancing crowd engagement and performance dynamics.
Weddings and Private Parties:
Adds elegant ambient uplighting for ceremonies and receptions, with soft wash effects for dining areas and dynamic beams for dancefloors.
Supports custom gobos to project monograms, dates, or themed patterns onto walls, ceilings, or dance surfaces.
Corporate Events:
Highlights stages during keynote speeches, product launches, and award ceremonies with focused spotlights and subtle background washes.
Integrates with video walls and projection systems for multi-sensory presentations that combine visuals and lighting.
Mobile Entertainers:
Lightweight design (8.5kg) and flight case compatibility simplify transport between venues, reducing setup time and logistical stress.
Universal voltage support (AC 100–240V) ensures reliable operation in global locations, from local parties to international events.
